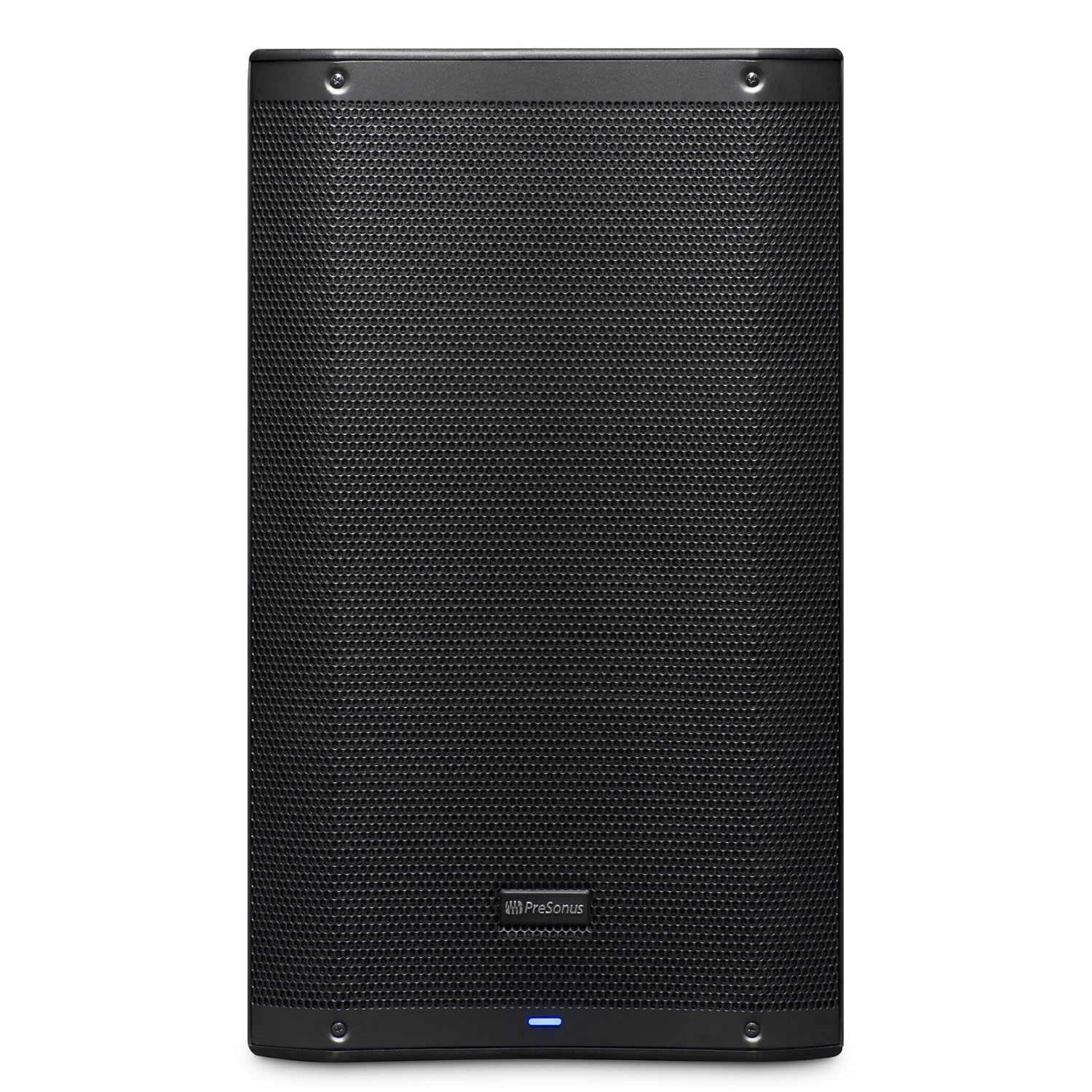

AIR12 – Versatile, customizable, and easy to transport:
Compact and lightweight, AIR12 active loudspeakers provide a rich, extended low-end and natural high-frequency extension in an enclosure that will easily fit in the backseat of a small car. Backed by 1,200W (dynamic) of Class D/Class AB power and enhanced with easy-to-use digital tuning functions, the AIR12 gives you all the power and tools you need for both mobile and installed sound.
The best of two worlds:
Each type of power amplifier has advantages and disadvantages. By employing different amplifier types for each driver, AIR12 loudspeakers use the respective strengths of Class D and Class A/B amplifiers to provide optimal response throughout the speaker’s frequency range. A 500W (continuous), Class D amplifier powers the 12-inch low-frequency driver, providing efficient, clean power for gut-shaking low end when you need it. A 200W (continuous), Class AB amplifier powers the 1.35-inch high-frequency driver, delivering a natural sounding, “AIR-y” high end. The combination can deliver up to 123 dB SPL of sweet, clear sound between 51 Hz and 20 kHz.
Fast and easy customization:
The AIR12 loudspeaker is equipped with an easy-to-use signal processor that makes it simple to customize your loudspeakers with the push of a button. Presets customize the AIR12’s response for use as front-of-house mains; as monitor wedges; for music playback (e.g., for DJs); for enhanced low end and a warmer sound; and for improved speech intelligibility. Treble and bass controls let you boost or cut by 10 dB to compensate for room anomalies. Location presets let you optimize performance for stand and bracket mounting as well as flown installations.
Versatile mounting for a variety of applications:
The AIR12’s molded plastic cabinet can be mounted in several ways, providing tremendous versatility. The multi-angle enclosure sports nonskid rubber feet on the bottom for upright front-of-house use and nonskid rubber feet on one side for stage monitor applications. Rig the speaker using M10 fly points or ground-stack it for portable applications. Mount it on a tripod or atop an AIR-series subwoofer using an optional sub pole. The integrated dual-position pole mount lets you aim the speaker level or at a 7.5˚ downward tilt. And the AIR12 is easy to transport, thanks to its top-mounted handle.
You’ll be floored:
If you place a loudspeaker against a hard surface such as a wall or floor, the low frequencies emitted from the rear of the enclosure propagate back into the room. This effect, called “half-space loading,” can increase the output of bass frequencies by as much as 6 dB, and it is an unavoidable issue with floor monitors. Most PA speakers in this class simply roll off excess low frequencies with a highpass filter—a half-baked compensation for half-space loading. In contrast, AIR-series full-range loudspeakers offer a Monitor preset that uses DSP to retune the speaker to both compensate for bass buildup and maintain a tight mid-bass response, while suppressing problematic frequencies to reduce feedback.
AIR-series full-range loudspeakers offer a choice of inputs so you can use them with a variety of sources. You get two combo XLR mic/TRS line inputs, each with a Class A microphone preamplifier and independent gain control. A stereo 1/8” connection admits signals from smartphones, tablets, and other consumer audio devices. These signals can be combined with the AIR12’s internal mixer, and a balanced XLR Mix output lets you send pass the signals to other AIR-series loudspeakers.
-Ultra-lightweight 1,200W 2-way active PA loudspeaker
-Onboard mixer with 2 XLR/TRS combo inputs and stereo 1/8″ input
-Class D efficiently drives the 12″ low-frequency driver
-Class AB powers the 1.35″ high-frequency driver for smooth, natural-sounding highs
-Convenient performance presets for front of house, wedge placement, music playback, enhanced low end, and improved speech intelligibility
-Onboard EQ controls tailor the sound to your room
-Location presets optimize performance for stand and bracket mounting and flown installations
-Carries PreSonus’s impressive 6-year warranty
Power Configuration: Bi-amped
LF Driver Size: 12″ Woofer
HF Driver Size: 1.35″ Compression Driver
LF Driver Power Amp: 500W Continuous, 900W Peak Class D
HF Driver Power Amp: 200W Continuous, 300W Peak Class A/B
Total Power: 1200W Peak
Inputs: 2 x XLR-1/4″ combo, 1 x 1/8″ (aux in)
Outputs: 1 x XLR (mix out)
Frequency Range: 48Hz-20khz (-10 dB)
Maximum Peak SPL: 123 dB SPL
Horizontal Coverage Angle: 90 Degrees
Vertical Coverage Angle: 60 Degrees
Signal Processing: EQ (HF, LF), Performance Presets (DJ, FOH, Monitor, Speech, Enhance)
Enclosure Material: Rugged Molded Plastic
Mounting Options: Pole Mount with 1.37″ socket, 3 x M10 Fly Points, Wall Mount (optional bracket)
Power Source: Standard IEC AC cable
Weight: 37.5 lbs.
