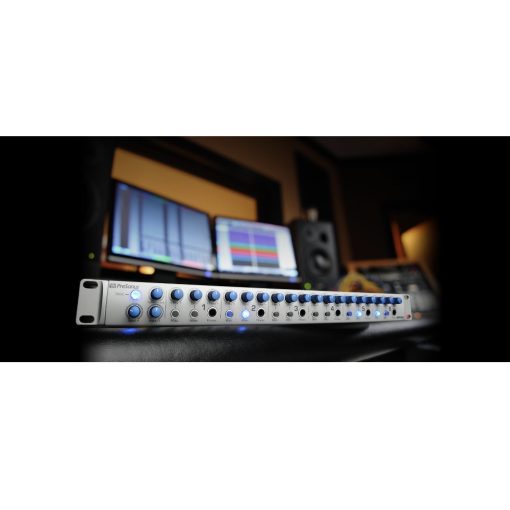

PreSonus HP60 – Rackmountable 6-Channel Headphone Mixing System

“Turn my headphones up!” “More me, I can’t hear myself!” “Turn down that click!” If musicians can’t clearly hear what they want, their performance and attitude will suffer. With the PreSonus® HP60 headphone distribution system, you can easily resolve these problems and provide headphone mixes the musicians will love. That’s because the HP60 is more than a half-dozen headphone amps; it’s a field-tested, easy-to-use solution to a host of common headphone-monitoring issues.

Each of the HP60’s six headphone amps has its own level control and is loud enough to drive the alligators out of the Louisiana swamps. And the HP60 lets you customize each mix. In addition to the two pairs of main stereo inputs, you get an external stereo input with level control, mono, and mute for each headphone channel. So you can send each musician a feed of just their instrument or voice and can control the level separately for each.

The HP60 features two sets of line-level, stereo inputs that are routed to all six headphones and a Mix control that sets relative levels for each headphone output. So you can feed the main control-room mix to channel A, feed the click signal to channel B, and use the Mix controls to individually raise or lower the click relative to the main mix for each musician.

With the HP60, when you talk, everyone listens. Hit the Talk button and use the talkback-mic input and your favorite dynamic mic to tell ‘em what to do. You can even use a footswitch to control the talkback hands-free. Need more than six headphones? Connect two HP60s for a 12-headphone system or connect the HP60 to a PreSonus HP4 to feed 10 pairs of headphones. So take command of your headphone system with the problem solver: the PreSonus HP60. Hear it now at your PreSonus dealer.

Features:
– Six independent ultra-low noise, high output headphone amplifiers (150 mW per channel)
– Two sets of stereo inputs (A and B) with balanced TRS connectors
– Stereo external input point on each channel for “more me” with trim control
– Mix control between inputs A and B
– Talkback with external XLR microphone with control
– Direct stereo line output on each channel

Specifications:
Input Channels: 8
Output Channels: 12
Analog Inputs: 4 x TRS (Main), 8 x 1/4″ (Stereo, TRS)
Analog Outputs: 6 x 1/4″ (Headphones), 6 x Stereo (TRS, Line)
Controls per Channel: Volume, Ext. In Mix
Form Factor: Rackmount
Height: 1.75″
Width: 19″
Depth: 5.5″
Weight: 8 lbs.
UPC: 673454000690
